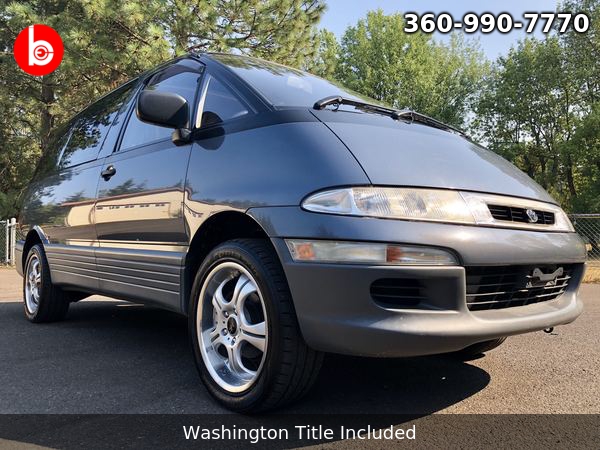

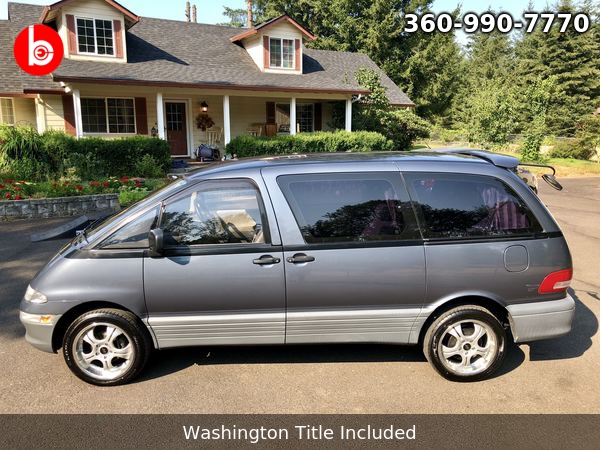

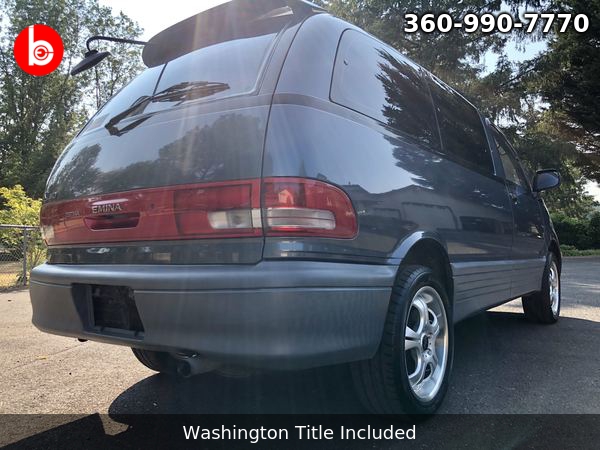

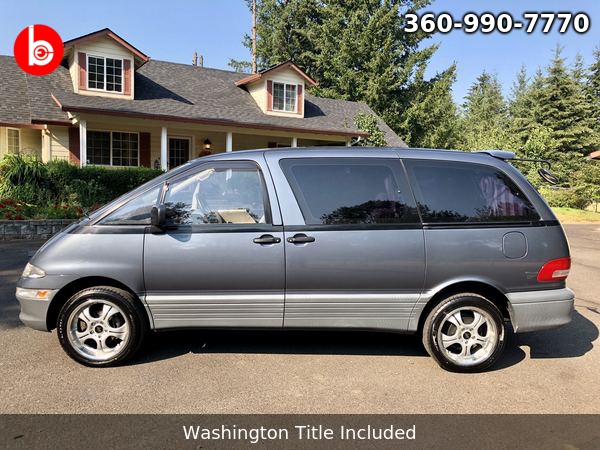

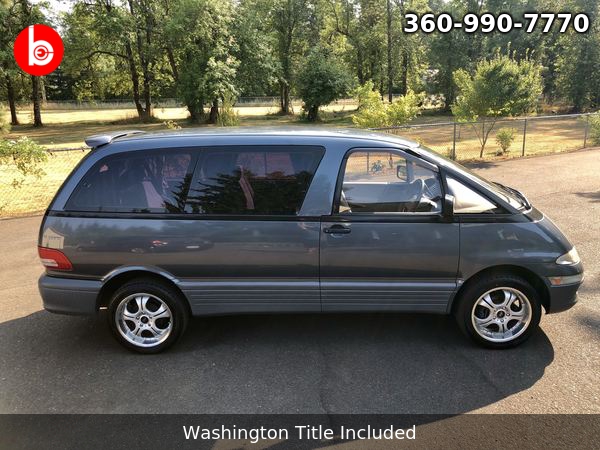

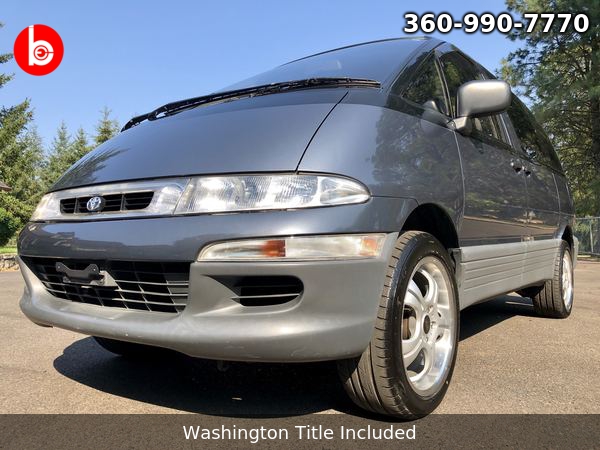

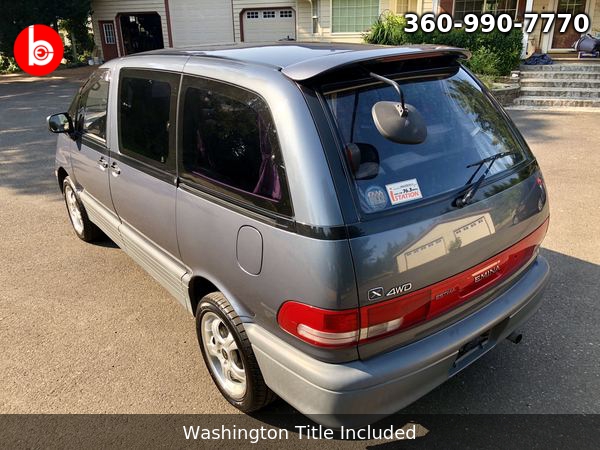

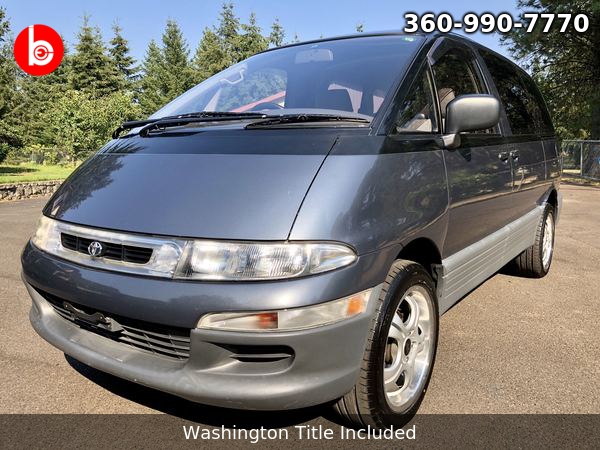

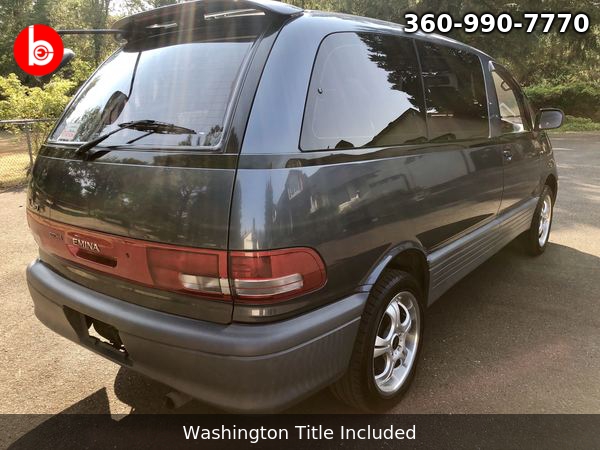

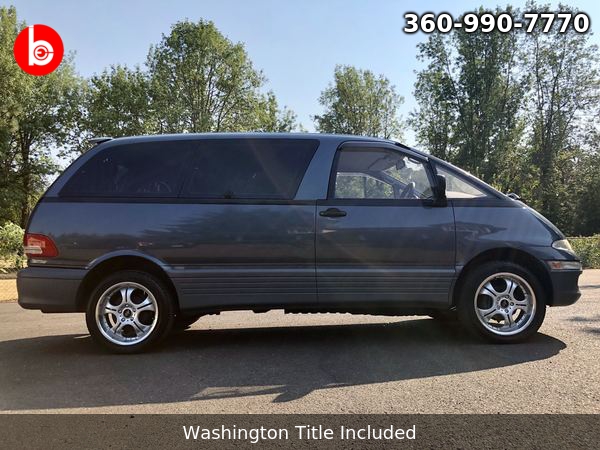

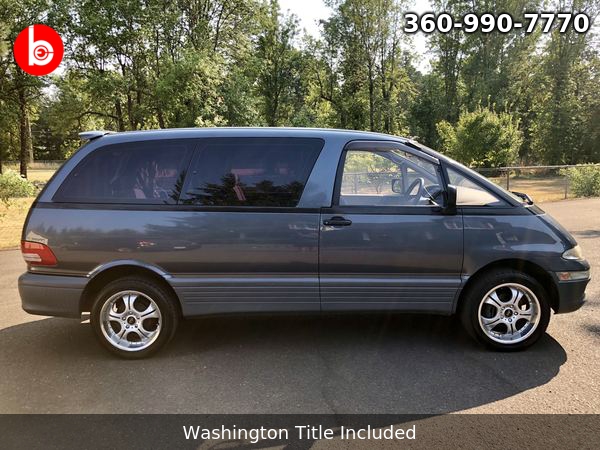

1993 Toyota Estima Emina X-AWD Auto, 2.2L Turbo Diesel, 4.5-B
Engine: 3C-T, 2.2L Turbo Diesel
Interior color: Grey/Blue
Exterior color: Blue
Fuel type: Diesel
Doors: 4 Door
Stock number: 156-5
The first generation, designed by Toyota designer Tokuo Fukuichi and Calty designer David Doyle in 1987 (patent filed 24 December 1987), was introduced on 27 January 1990, had only one sliding side door for the rear passengers. It featured a unique mid-engined platform, where the inline four cylinder gasoline-powered engine was installed almost flat (at a 75-degree angle), beneath the front seats.
Installing the engine in this configuration allowed moderately easy access to the spark plugs, which were located underneath a panel on the upper left-side of the vehicle, after removing the front passenger seat, the carpet, and an access panel.

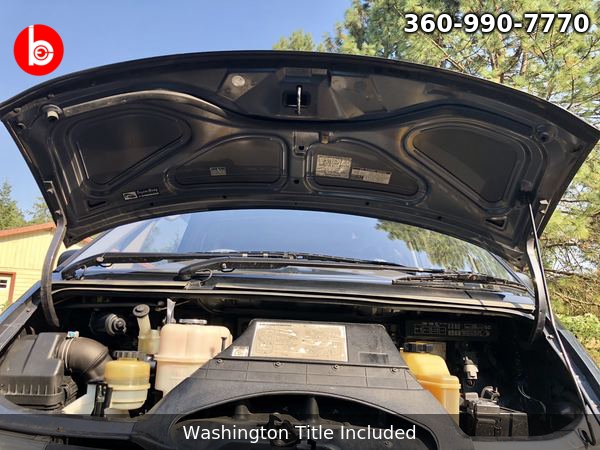

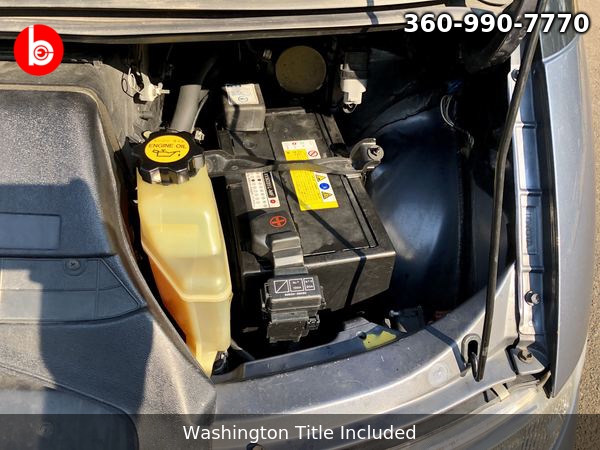

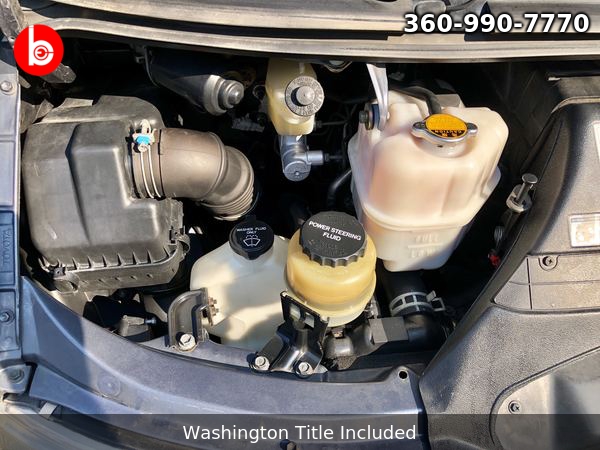

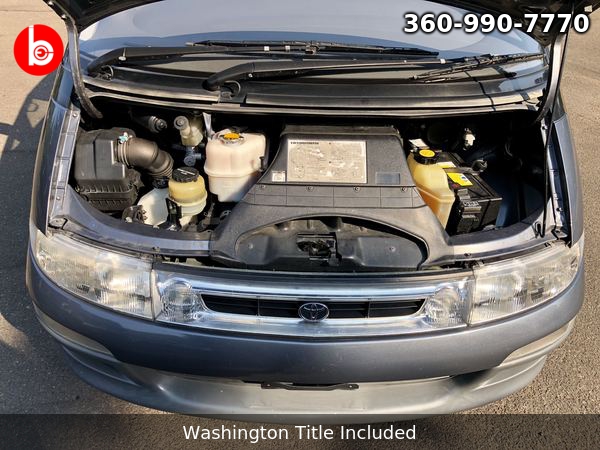

All engine-driven accessories, such as the alternator, power steering pump, air conditioning compressor, and radiator fan, are accessible from the front hood, driven off the front of the engine by an accessory driveshaft, and is known as the Supplemental Accessory Drive System, or "SADS." This allows for even front/rear weight distribution, which benefits ride quality and handling. However, it also prevents the installation of a larger engine, while the cost could not be relayed by sharing the platform with other vehicles.
The first generation Previa was 4,750 mm (187.0 in) long and 1,803 mm (71.0 in) wide. In Japan, two smaller versions, the Toyota Estima Lucidaand Toyota Estima Emina, were produced, which were approximately 110 mm (4.3 in) narrower and 70 mm (2.8 in) shorter than the standard model, which continued to be sold in Japan but as the "wide-body" Estima.
The reason for the difference between the smaller Emina and Lucida models is the vehicle tax system in Japan, which is based on the product of length and width of the car, and the smaller variants fall into a lower tax band. The Estima Emina and Estima Lucida were also available with a 2.2-liter diesel engine (3C-T and 3C-TE). In Japan, the Estima and Estima Emina were exclusive to the dealerships called Toyota Store. The Estima Lucida sold at Toyota Corolla Store dealerships.
The first generation Previa was available in both rear- and all-wheel driveversions (called All-Trac) and powered by a 135 hp (101 kW) JIS (99 kW) four-cylinder 2.4-liter fuel injection engine. Available with a four-speed automatic or five-speed manual gearbox, this Previa also seated seven or eight people, with three seating configurations offered (North America only received the seven passenger configurations, however).

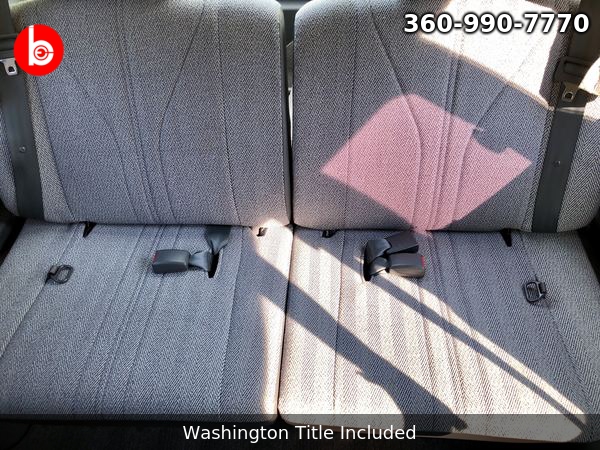

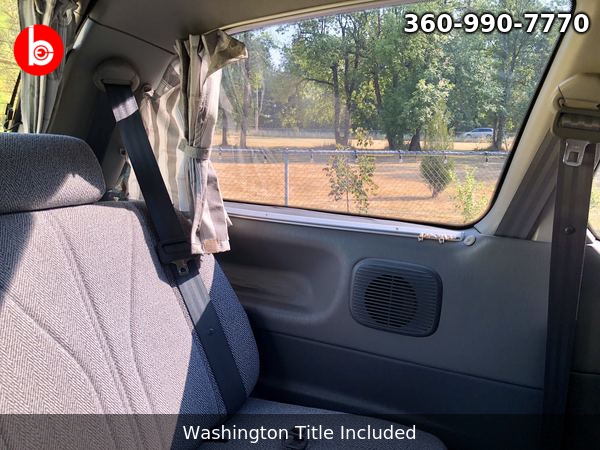

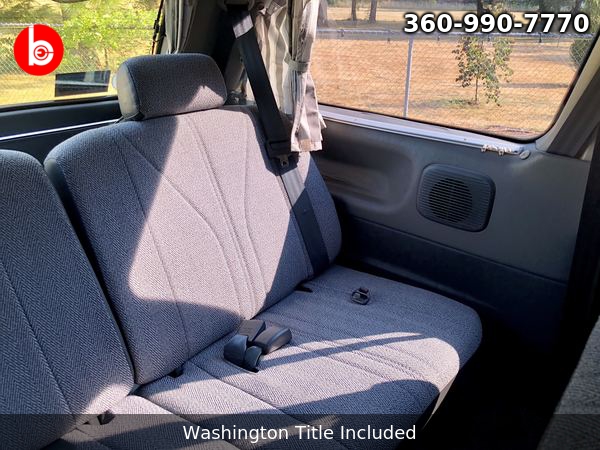

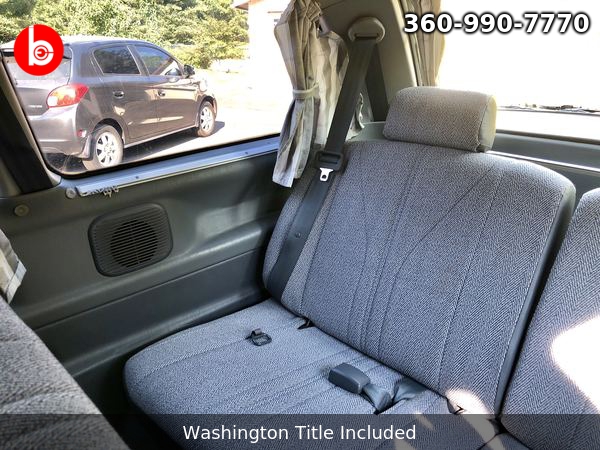

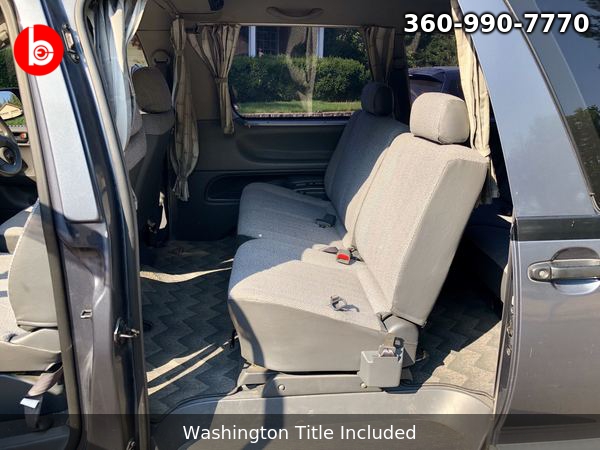

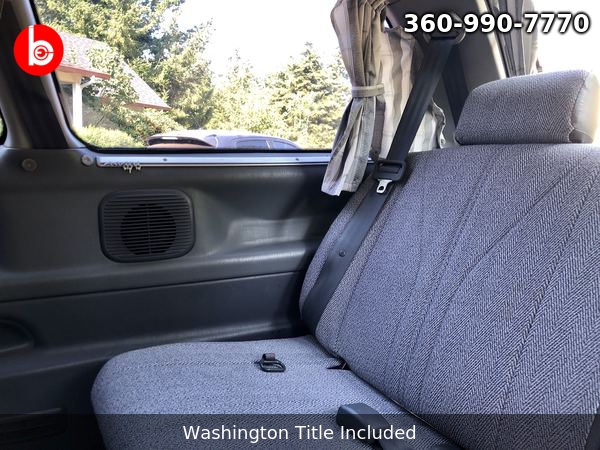

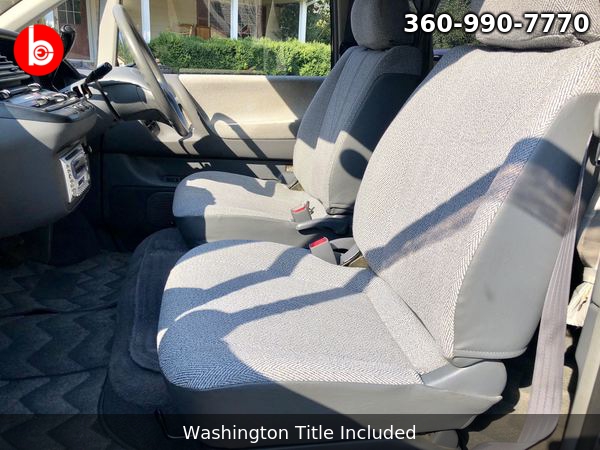

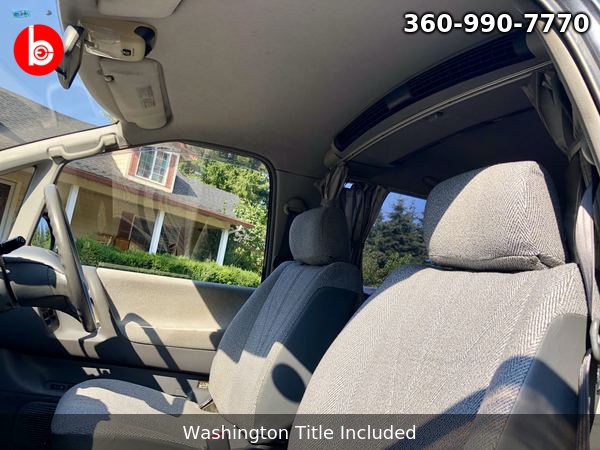

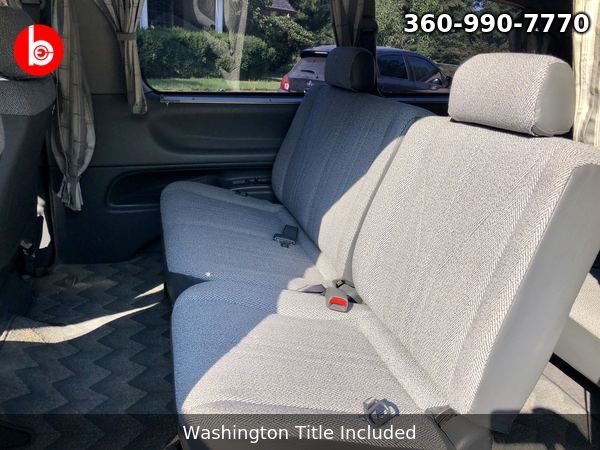

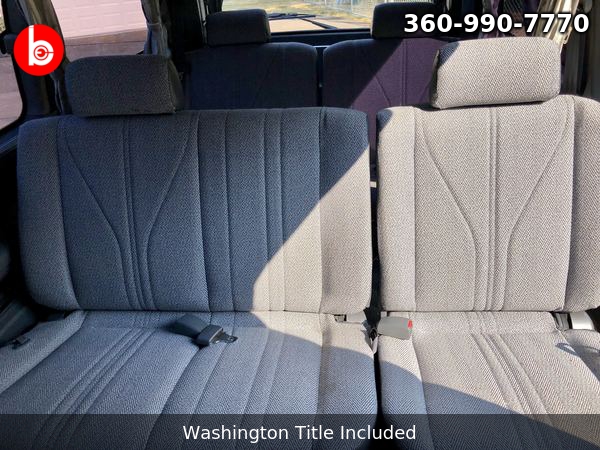

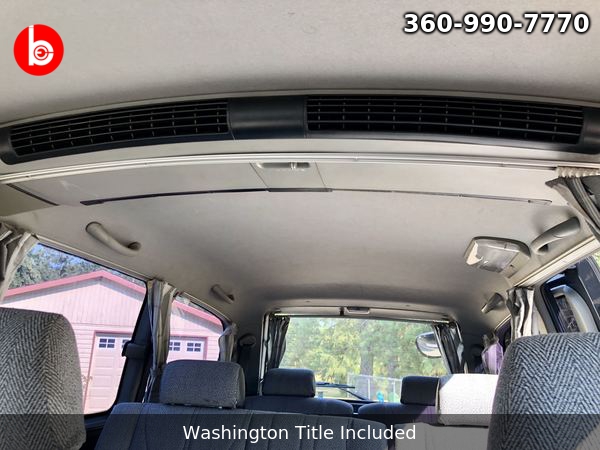

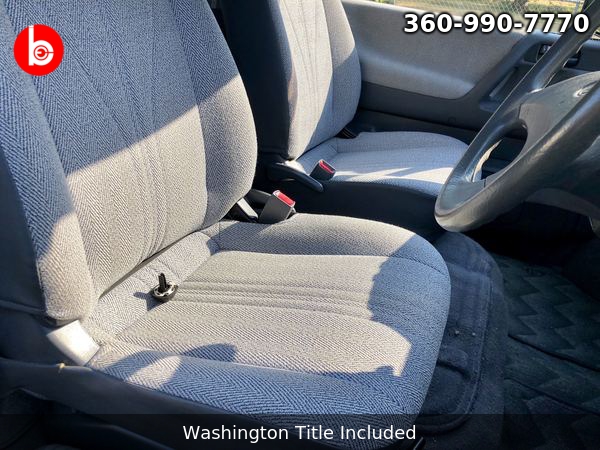

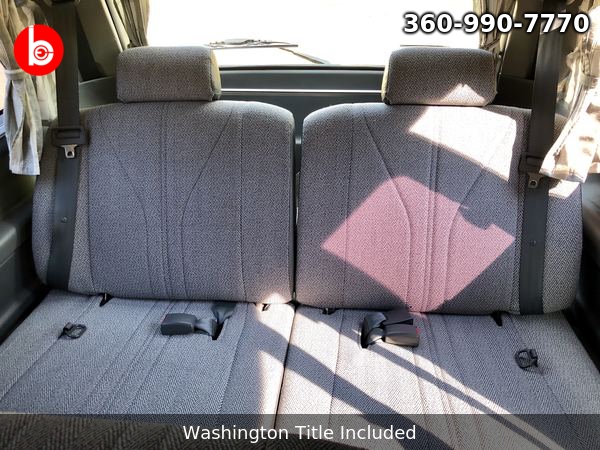

All configurations have a driver and front passenger seat forward, and a three-seat bench seat at the rear that splits and folds flat against the sides of the cabin. The eight-seat configuration contains a 2/1 split swiveling bench seat in the middle row, while the seven-seat configurations contain either two independently swiveling captain's chairs (referred to as "Quad Seating"), in the middle row or a two-seat bench offset towards the driver's side.
The third row is also better upholstered in the seven-seat version. It was available with either four-wheel disc brakesor traditional front disc/rear drum brake setup, with anti-lock brakes (ABS) as an option.
